M.Zuiko Digital 17mm F1.8 II
Ignite your creativity with a lens that delivers soft, beautiful background bokeh and unparalleled resolution. Its splash and dustproof design allows you to shoot in any weather, while its lightweight, portable build invites adventure. The 34mm (35mm equivalent) wide-angle lens elevates your images, offering clarity and beauty wherever your passion takes you. Trust us, once you’ve tried an F1.8 prime lens, there’s no looking back.
- F1.8 Low-light performance and beautiful background bokeh
- 34mm Wide as your vision. 35mm equivalent focal length.
- Weathersealed IPX1 certified. Splashproof, Dustproof, Freezeproof.
- High-Speed Imager AF (MSC)
- Weighs only 112 g
- 46 mm filter diameter
Beautiful background blur
Bokeh is a key element in expressive photography, helping to highlight the subject or create a soft, dreamy effect. The large F1.8 aperture allows for beautiful defocus, making the subject stand out more than with a kit lens.
No matter the weather

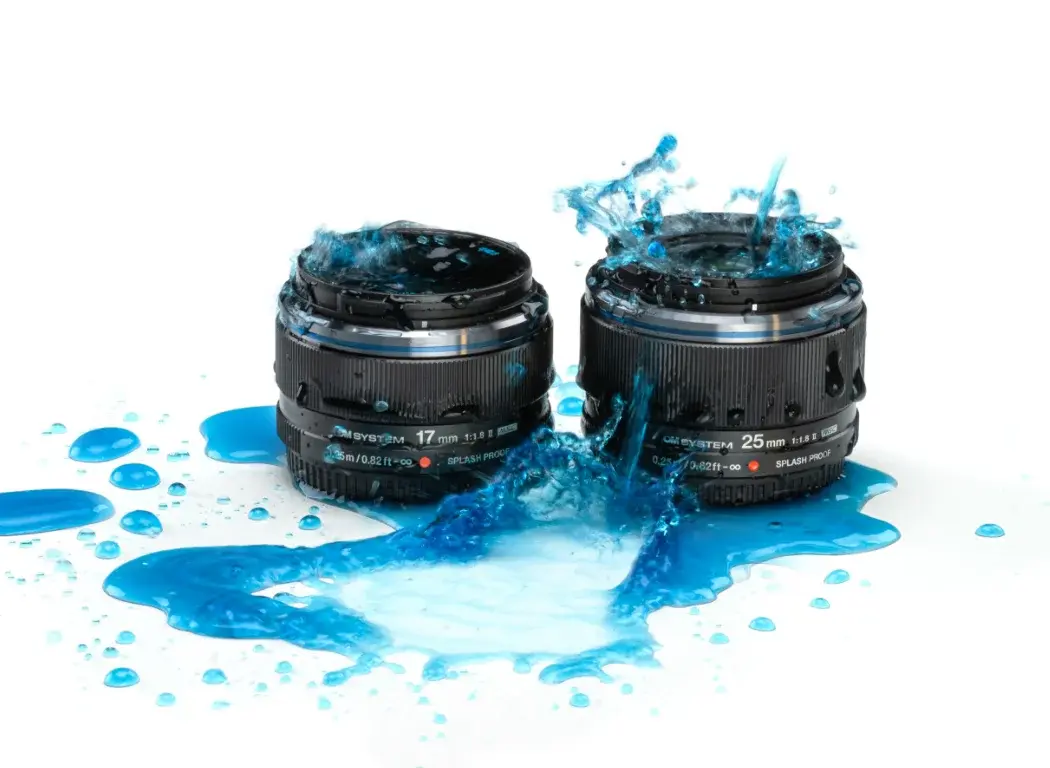

IPX1 certification provides splashproof and dustproof protection for durability in challenging conditions. Its compact, lightweight design ensures easy portability, so you can shoot without worrying about wet gear. Capture landscapes in nature or city snapshots, even when the weather turns unexpectedly.
The art of image quality

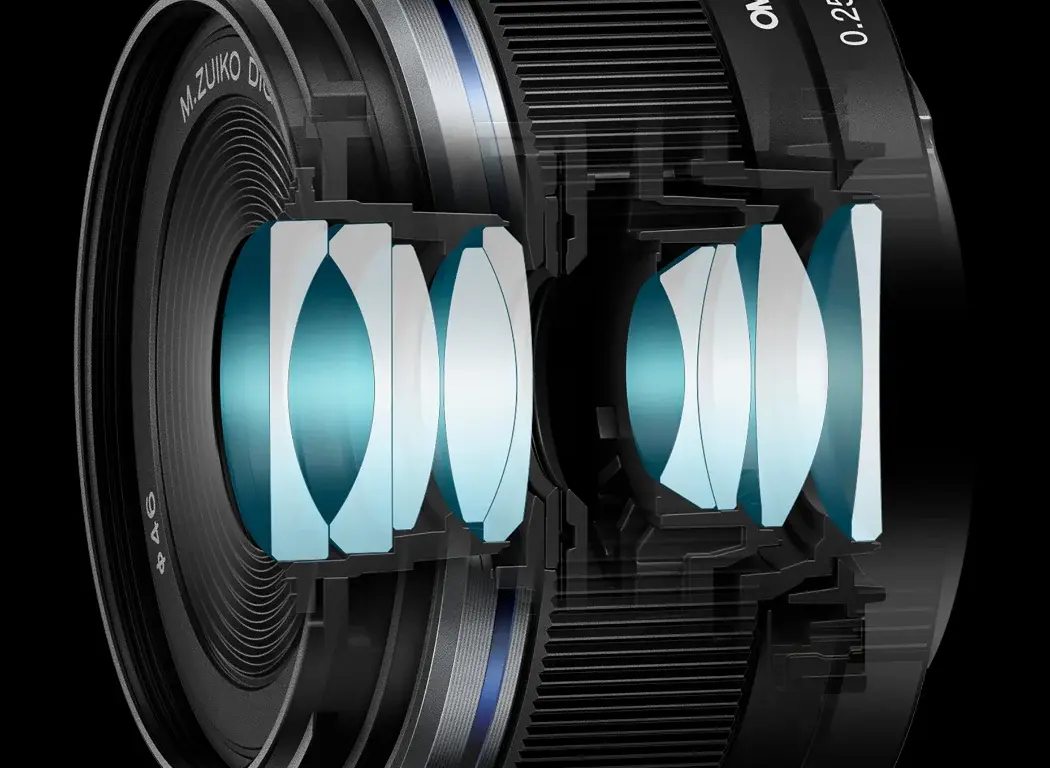

The lens features a DSA (Dual Super Aspheric) and HR (High Refractive Index) lens to reduce aberrations. With 9 elements in 6 groups, it delivers high image quality and resolution in a compact, lightweight design (37.6mm, 112g).
Technical specifications
- Focal Length Range 17mm
- 35mm Equivalent 34mm
- Angle of View 65°
- Maximum Aperture f/1.8
Open full list of technical specifications
M.Zuiko Digital 17mm F1.8 II technical specifications
- Focal Length Range 17mm
- 35mm Equivalent 34mm
- Angle of View 65°
- Maximum Aperture f/1.8
- Specifications
- Focal Length Range 17mm
- 35mm Equivalent 34mm
- Angle of View 65°
- Minimum Focusing Distance 0.25m
- Maximum Aperture f/1.8
- Minimum Aperture f/22
- Maximum Image Magnification 0.08x
- Diaphragm 7 blade circular
- Lens Function Button [L-Fn] No
- MSC Mechanism Yes
- MF Clutch / Snapshot Ring No
- Lens Sync IS No
- Lens Coating Yes (ZERO Coating)
- Filter Diameter 46mm
- Dimensions 57.6 x 37.6mm
- Weight 112g
- Type Fixed Focal Length
- Weatherproof Dustproof, Freezeproof, Splashproof
- Warranty (years) 1 year
